03 — 3-Way Six-Basis Comparison: Single Event vs All Composite vs CWB-Only
Compares PV-tendency decomposition using three different orthogonal bases, all projecting the same single-event dq/dt (track 425):
Label |
Basis source |
N events |
|---|---|---|
Single event |
Track 425 PV anomaly & gradients |
1 |
All composite |
All-event composite mean (~1260 onset) |
1260 |
CWB only |
CWB-only composite mean (cyclonic wave breaking) |
239 |
Sections:
PV anomaly + mask comparison (3×3 grid)
Six orthogonal basis modes side-by-side (6 rows × 3 cols)
Reconstruction components at dh=0 (3 separate 2×3 figures)

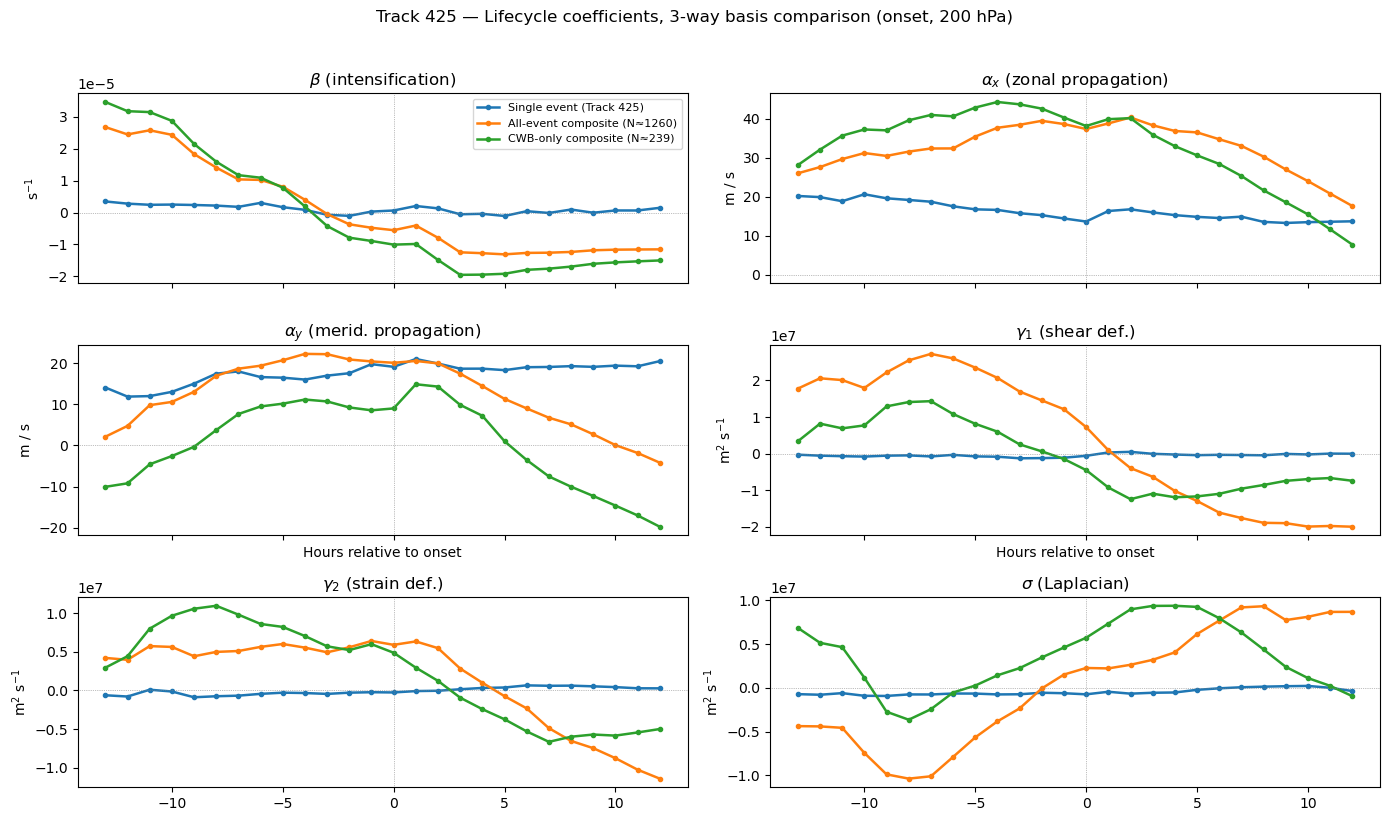

Lifecycle coefficient curves (β, αx, αy, γ₁, γ₂, σ)

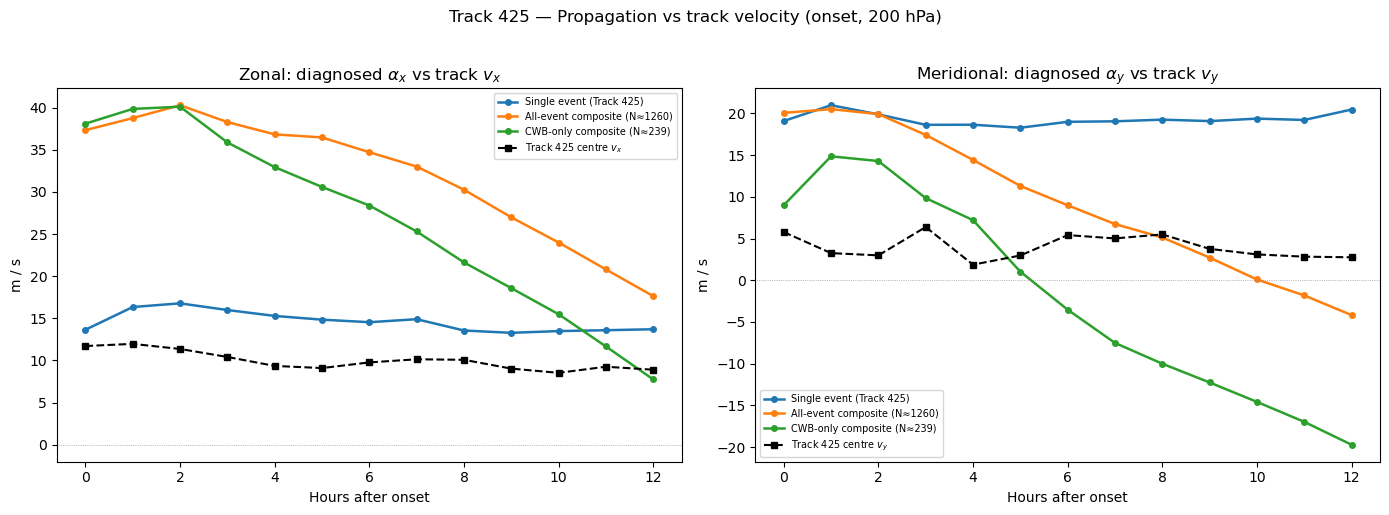

αx and αy vs track-centre velocity overlay
[1]:
import numpy as np
import matplotlib.pyplot as plt
import os, glob, json
from pathlib import Path
from pvtend import compute_orthogonal_basis, project_field, R_EARTH
from pvtend.plotting import plot_coefficient_curves, plot_field_2d
from pvtend.decomposition.projection import ADVECTION_TERMS
from pvtend.decomposition.smoothing import gaussian_smooth_nan
from pvtend.composite_builder import CompositeResult, CompositeConfig, build_composites
1 Configuration
[2]:
# ── Composite (basis source) ──────────────────────────────────────────
PKL_PATH = "/net/flood/data2/users/x_yan/tempest_extreme_4_basis/outputs/composite_blocking.pkl"
STAGE = "onset"
LEVEL = 200 # hPa level for reduce_2d (or "wavg")
# ── CWB-only composite ──────────────────────────────────────────────
CWB_IDS_JSON = "/net/flood/data2/users/x_yan/tempest_extreme_4_basis/research_questions/00_rwb_stage_clusters/track_ids/onset_CWB_only.json"
CWB_PKL_CACHE = "/net/flood/data2/users/x_yan/tempest_extreme_4_basis/outputs/composite_cwb_only.pkl"
# ── Single event (projection target) ────────────────────────────────
DATA_ROOT = "/net/flood/data2/users/x_yan/composite_blocking_tempest"
TRACK_GLOB = "track_425_*"
TRACK_ID = TRACK_GLOB.split("_")[1] # "425"
# ── Shared settings ─────────────────────────────────────────────────
SMOOTH_DEG = 3.0
GRID_SP = 1.5 # grid spacing in degrees
MASK_SPEC = "< 0" # composite mask (SI units)
MASK_SPEC_EVENT = "< -5e-7" # single-event mask
# ── Labels & colours for the 3 basis types ──────────────────────────
COLORS = {"event": "C0", "all": "C1", "cwb": "C2"}
_lvl_str = f"{LEVEL} hPa" if isinstance(LEVEL, int) else "wavg"
print(f"Stage: {STAGE} Level: {_lvl_str}")
print(f"Track: {TRACK_ID} Smoothing: {SMOOTH_DEG}° Grid: {GRID_SP}°")
Stage: onset Level: 200 hPa
Track: 425 Smoothing: 3.0° Grid: 1.5°
2 Load data: all-event composite, CWB-only composite, and single-event NPZ
[3]:
# ── (a) Load all-event composite ─────────────────────────────────────
CR_all = CompositeResult.load(PKL_PATH)
LEVELS = CR_all.levels
X_REL = CR_all.x_rel
Y_REL = CR_all.y_rel
DH_RANGE = CR_all.available_dh(STAGE)
N_ALL = CR_all.counts[STAGE][0]
x_rel = X_REL[0, :]
y_rel = Y_REL[:, 0]
def _cm_all(dh, field_name):
'''All-event composite-mean 2-D field at the configured LEVEL.'''
key = field_name if field_name.endswith("_3d") else field_name + "_3d"
return CR_all.reduce_2d(key, STAGE, dh, level_mode=LEVEL)
print(f"All-event composite: dh = {DH_RANGE[0]}…{DH_RANGE[-1]} ({len(DH_RANGE)} steps), N ≈ {N_ALL}")
# ── (b) Build or load CWB-only composite ────────────────────────────
if os.path.isfile(CWB_PKL_CACHE):
print(f"\nLoading cached CWB-only PKL: {CWB_PKL_CACHE}")
CR_cwb = CompositeResult.load(CWB_PKL_CACHE)
else:
print(f"\nBuilding CWB-only composite from NPZ (first run, may take a few minutes)...")
with open(CWB_IDS_JSON) as f:
cwb_ids = frozenset(json.load(f))
print(f" CWB track IDs loaded: {len(cwb_ids)} tracks")
class _MinimalRWB:
def __init__(self, vt):
self._vt = vt
@property
def variant_trackset(self):
return self._vt
cfg = CompositeConfig(npz_dir=Path(DATA_ROOT), stages=[STAGE])
CR_cwb = build_composites(cfg, _MinimalRWB({"CWB_only": cwb_ids}))
CR_cwb.save(CWB_PKL_CACHE)
N_CWB = CR_cwb.counts_v.get("CWB_only", {}).get(STAGE, {}).get(0, 0)
DH_RANGE_CWB = CR_cwb.available_dh(STAGE, variant="CWB_only")
def _cm_cwb(dh, field_name):
'''CWB-only composite-mean 2-D field at the configured LEVEL.'''
key = field_name if field_name.endswith("_3d") else field_name + "_3d"
return CR_cwb.reduce_2d(key, STAGE, dh, variant="CWB_only", level_mode=LEVEL)
print(f"CWB-only composite: N ≈ {N_CWB}")
# ── (c) Load single-event dh=0 ──────────────────────────────────────
d0 = dict(np.load(f"{DATA_ROOT}/{STAGE}/dh=+0/{TRACK_GLOB.replace('*','2000011120_dh+0')}.npz"))
print(f"\nSingle event: track {TRACK_ID}, patch shape: {d0['pv_anom'].shape}")
# ── Labels ──────────────────────────────────────────────────────────
LABELS = {
"event": f"Single event (Track {TRACK_ID})",
"all": f"All-event composite (N≈{N_ALL})",
"cwb": f"CWB-only composite (N≈{N_CWB})",
}
All-event composite: dh = -13…12 (26 steps), N ≈ 1260
Loading cached CWB-only PKL: /net/flood/data2/users/x_yan/tempest_extreme_4_basis/outputs/composite_cwb_only.pkl
CWB-only composite: N ≈ 239
Single event: track 425, patch shape: (29, 49)
3 Build three orthogonal bases from PV anomaly (dh = 0)
[4]:
smooth = lambda f: gaussian_smooth_nan(f, smoothing_deg=SMOOTH_DEG, grid_spacing=GRID_SP)
# ── Single-event basis ──────────────────────────────────────────────
basis_ev = compute_orthogonal_basis(
pv_anom=d0["pv_anom"], pv_dx=d0["pv_dx"], pv_dy=d0["pv_dy"],
x_rel=x_rel, y_rel=y_rel, mask=MASK_SPEC_EVENT,
apply_smoothing=True, smoothing_deg=SMOOTH_DEG, grid_spacing=GRID_SP,
)
print("Single-event basis norms:", {k: f"{v:.4e}" for k, v in basis_ev.norms.items()})
# ── All-event composite basis ───────────────────────────────────────
basis_all = compute_orthogonal_basis(
pv_anom=_cm_all(0, "pv_anom"), pv_dx=_cm_all(0, "pv_dx"), pv_dy=_cm_all(0, "pv_dy"),
x_rel=x_rel, y_rel=y_rel, mask=MASK_SPEC,
apply_smoothing=True, smoothing_deg=SMOOTH_DEG, grid_spacing=GRID_SP,
)
print("All-composite basis norms:", {k: f"{v:.4e}" for k, v in basis_all.norms.items()})
# ── CWB-only composite basis ───────────────────────────────────────
basis_cwb = compute_orthogonal_basis(
pv_anom=_cm_cwb(0, "pv_anom"), pv_dx=_cm_cwb(0, "pv_dx"), pv_dy=_cm_cwb(0, "pv_dy"),
x_rel=x_rel, y_rel=y_rel, mask=MASK_SPEC,
apply_smoothing=True, smoothing_deg=SMOOTH_DEG, grid_spacing=GRID_SP,
)
print("CWB-only basis norms:", {k: f"{v:.4e}" for k, v in basis_cwb.norms.items()})
bases = {"event": basis_ev, "all": basis_all, "cwb": basis_cwb}
Single-event basis norms: {'beta': '1.6710e+02', 'ax': '2.0464e+01', 'ay': '3.1854e+01', 'gamma1': '6.8153e+00', 'gamma2': '4.6621e+00', 'sigma': '1.6261e+00'}
All-composite basis norms: {'beta': '1.6800e+02', 'ax': '1.9650e+02', 'ay': '1.2334e+02', 'gamma1': '1.2807e+02', 'gamma2': '1.0685e+02', 'sigma': '3.1487e+01'}
CWB-only basis norms: {'beta': '1.6559e+02', 'ax': '1.8453e+02', 'ay': '1.1423e+02', 'gamma1': '6.1772e+01', 'gamma2': '4.8943e+01', 'sigma': '2.1719e+01'}
/tmp/ipykernel_3458639/399201381.py:4: UserWarning: compute_orthogonal_basis: grid_spacing=1.5°, center_lat=60.0°N → dx(center)=83.4 km, dy=166.8 km
basis_ev = compute_orthogonal_basis(
/tmp/ipykernel_3458639/399201381.py:12: UserWarning: compute_orthogonal_basis: grid_spacing=1.5°, center_lat=60.0°N → dx(center)=83.4 km, dy=166.8 km
basis_all = compute_orthogonal_basis(
/tmp/ipykernel_3458639/399201381.py:20: UserWarning: compute_orthogonal_basis: grid_spacing=1.5°, center_lat=60.0°N → dx(center)=83.4 km, dy=166.8 km
basis_cwb = compute_orthogonal_basis(

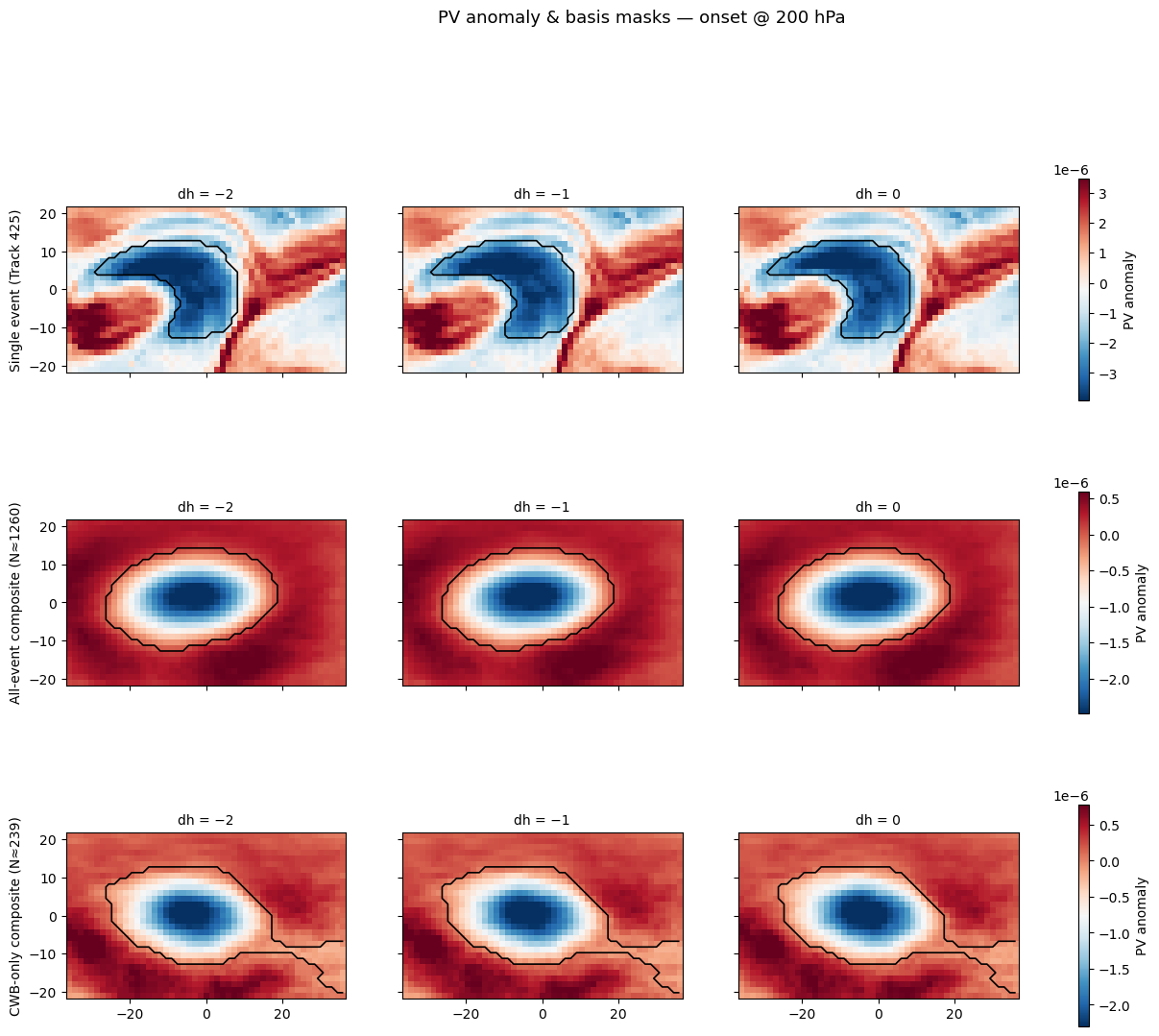

4 Section 1 — PV anomaly at dh=−2, −1, 0 with basis mask contour
[5]:
# ── Load single-event fields at dh = -2, -1, 0 ──────────────────────
event_fields = {}
for dh_ev in [-2, -1, 0]:
sign = "+" if dh_ev >= 0 else ""
pat = f"{DATA_ROOT}/{STAGE}/dh={sign}{dh_ev}/track_{TRACK_ID}_*_dh{sign}{dh_ev}.npz"
f = sorted(glob.glob(pat))
if f:
event_fields[dh_ev] = dict(np.load(f[0]))
fig, axes = plt.subplots(3, 3, figsize=(16, 12), sharex=True, sharey=True)
dh_labels = ["dh = −2", "dh = −1", "dh = 0"]
# ── Row 0: single event ─────────────────────────────────────────────
vmin_e, vmax_e = np.nanpercentile(d0["pv_anom"], [2, 98])
for ax, dh, ttl in zip(axes[0], [-2, -1, 0], dh_labels):
fld = event_fields.get(dh, {}).get("pv_anom", np.full_like(d0["pv_anom"], np.nan))
im0 = ax.pcolormesh(X_REL, Y_REL, fld, cmap="RdBu_r",
vmin=vmin_e, vmax=vmax_e, shading="auto")
ax.contour(X_REL, Y_REL, basis_ev.mask.astype(float), levels=[0.5],
colors="k", linewidths=1.2)
ax.set_title(ttl, fontsize=10)
ax.set_aspect("equal")
axes[0, 0].set_ylabel(LABELS["event"], fontsize=10)
fig.colorbar(im0, ax=axes[0, :].tolist(), label="PV anomaly", shrink=0.85)
# ── Row 1: all-event composite ──────────────────────────────────────
vmin_a, vmax_a = np.nanpercentile(_cm_all(0, "pv_anom"), [2, 98])
for ax, dh, ttl in zip(axes[1], [-2, -1, 0], dh_labels):
fld = _cm_all(dh, "pv_anom")
im1 = ax.pcolormesh(X_REL, Y_REL, fld, cmap="RdBu_r",
vmin=vmin_a, vmax=vmax_a, shading="auto")
ax.contour(X_REL, Y_REL, basis_all.mask.astype(float), levels=[0.5],
colors="k", linewidths=1.2)
ax.set_title(ttl, fontsize=10)
ax.set_aspect("equal")
axes[1, 0].set_ylabel(LABELS["all"], fontsize=10)
fig.colorbar(im1, ax=axes[1, :].tolist(), label="PV anomaly", shrink=0.85)
# ── Row 2: CWB-only composite ───────────────────────────────────────
vmin_w, vmax_w = np.nanpercentile(_cm_cwb(0, "pv_anom"), [2, 98])
for ax, dh, ttl in zip(axes[2], [-2, -1, 0], dh_labels):
fld = _cm_cwb(dh, "pv_anom")
im2 = ax.pcolormesh(X_REL, Y_REL, fld, cmap="RdBu_r",
vmin=vmin_w, vmax=vmax_w, shading="auto")
ax.contour(X_REL, Y_REL, basis_cwb.mask.astype(float), levels=[0.5],
colors="k", linewidths=1.2)
ax.set_title(ttl, fontsize=10)
ax.set_aspect("equal")
axes[2, 0].set_ylabel(LABELS["cwb"], fontsize=10)
fig.colorbar(im2, ax=axes[2, :].tolist(), label="PV anomaly", shrink=0.85)
fig.suptitle(f"PV anomaly & basis masks — {STAGE} @ {_lvl_str}", fontsize=13, y=1.01)
# plt.tight_layout()
plt.show()

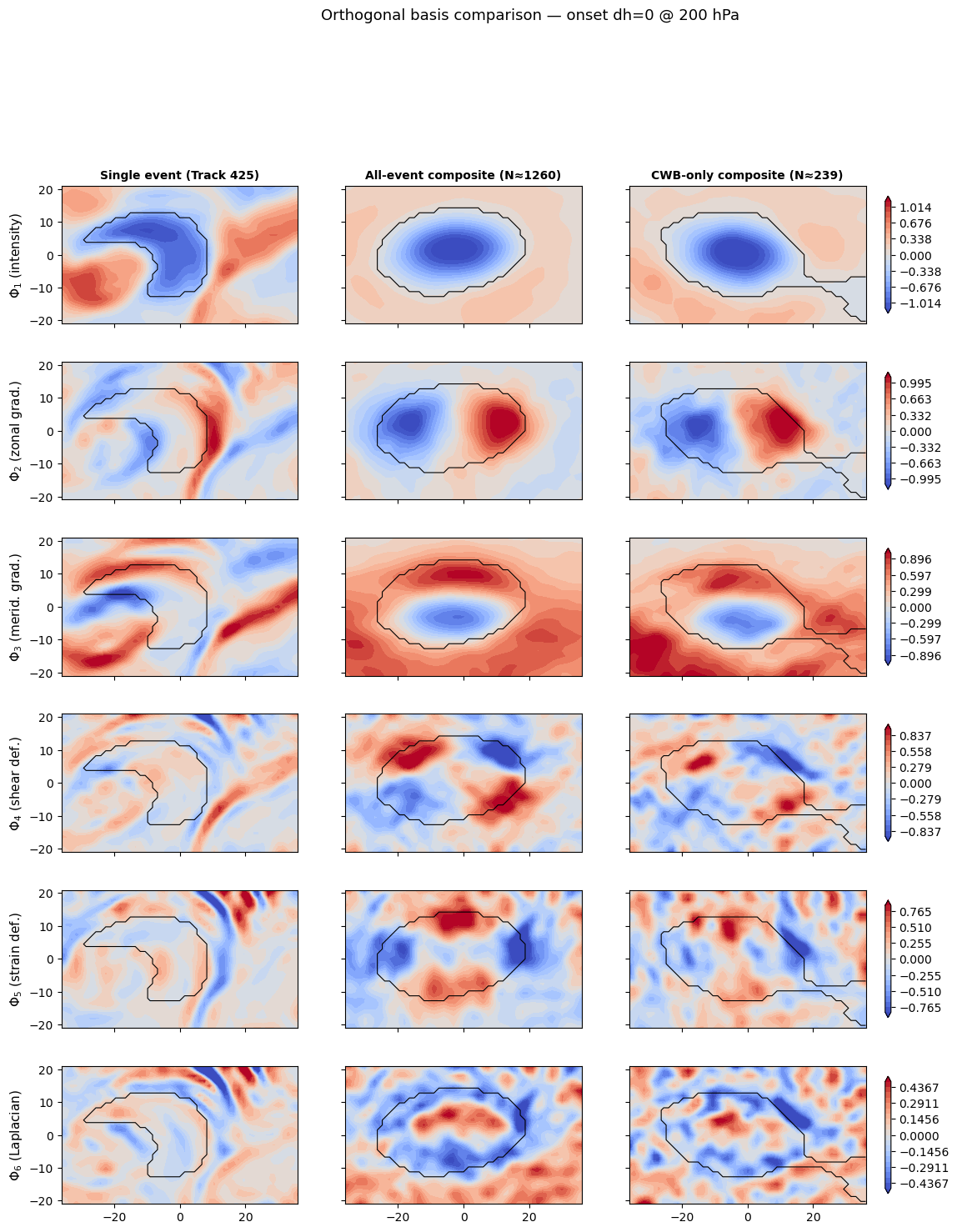

5 Section 2 — Six orthogonal basis modes (6 rows × 3 columns)
[6]:
phi_names = [r"$\Phi_1$ (intensity)", r"$\Phi_2$ (zonal grad.)",
r"$\Phi_3$ (merid. grad.)", r"$\Phi_4$ (shear def.)",
r"$\Phi_5$ (strain def.)", r"$\Phi_6$ (Laplacian)"]
phi_attrs = ["phi_int", "phi_dx", "phi_dy", "phi_def", "phi_strain", "phi_lap"]
basis_keys = ["event", "all", "cwb"]
fig, axes = plt.subplots(6, 3, figsize=(15, 16), sharex=True, sharey=True)
for row, (attr, phi_label) in enumerate(zip(phi_attrs, phi_names)):
# Shared colorscale per row across the 3 basis types
all_vals = np.concatenate([np.ravel(getattr(bases[k], attr)) for k in basis_keys])
vmax = np.nanpercentile(np.abs(all_vals), 98)
levels = np.linspace(-vmax, vmax, 21)
for col, bkey in enumerate(basis_keys):
ax = axes[row, col]
b = bases[bkey]
fld = getattr(b, attr)
cf = ax.contourf(x_rel, y_rel, fld, levels=levels, cmap="coolwarm", extend="both")
ax.contour(x_rel, y_rel, b.mask.astype(float), levels=[0.5],
colors="k", linewidths=0.8)
ax.set_aspect("equal")
if row == 0:
ax.set_title(LABELS[bkey], fontsize=10, fontweight="bold")
if col == 0:
ax.set_ylabel(phi_label, fontsize=11)
fig.colorbar(cf, ax=axes[row, :].tolist(), shrink=0.8, pad=0.02)
fig.suptitle(f"Orthogonal basis comparison — {STAGE} dh=0 @ {_lvl_str}", fontsize=13, y=1.01)
# plt.tight_layout()
plt.show()

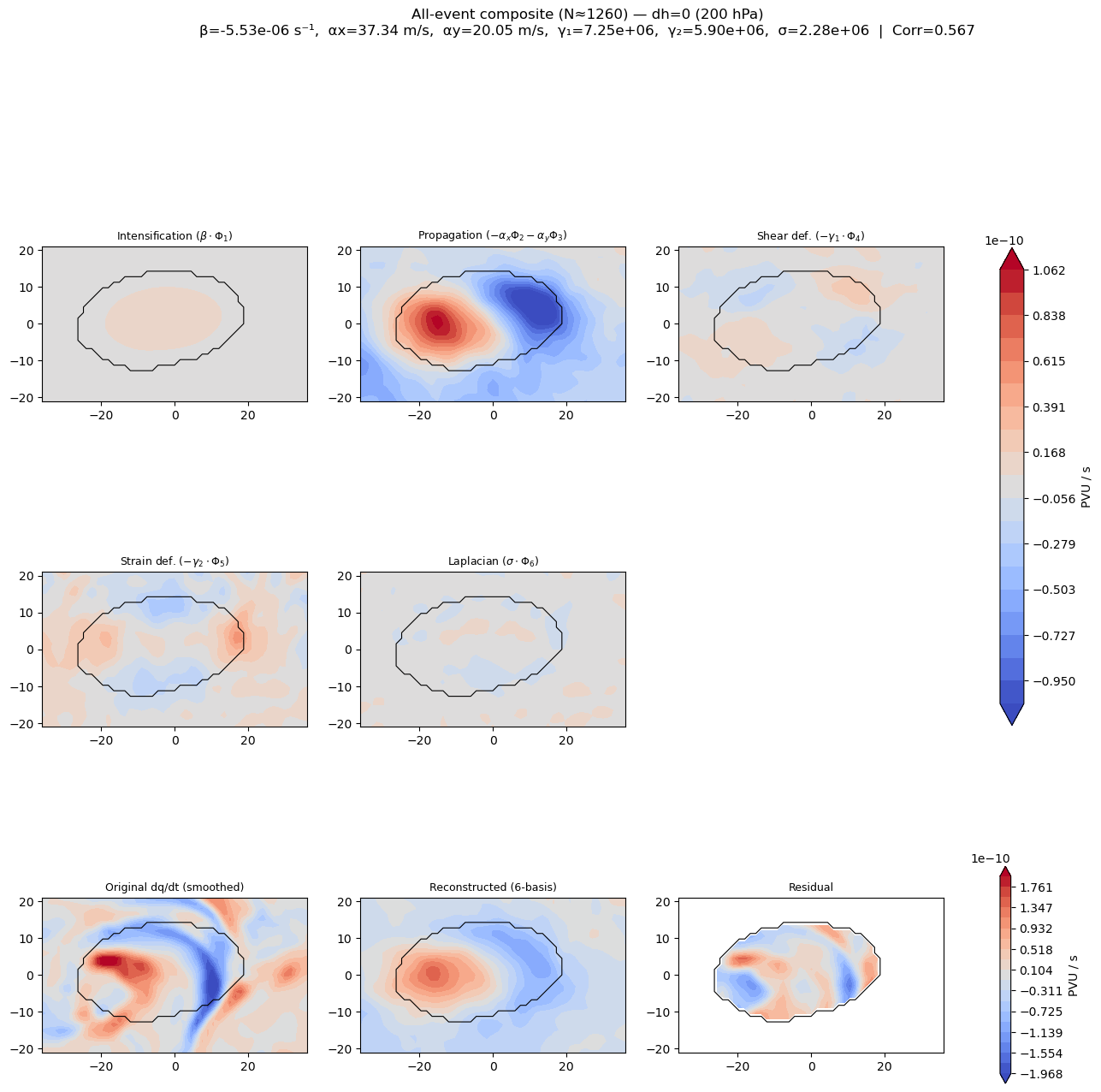

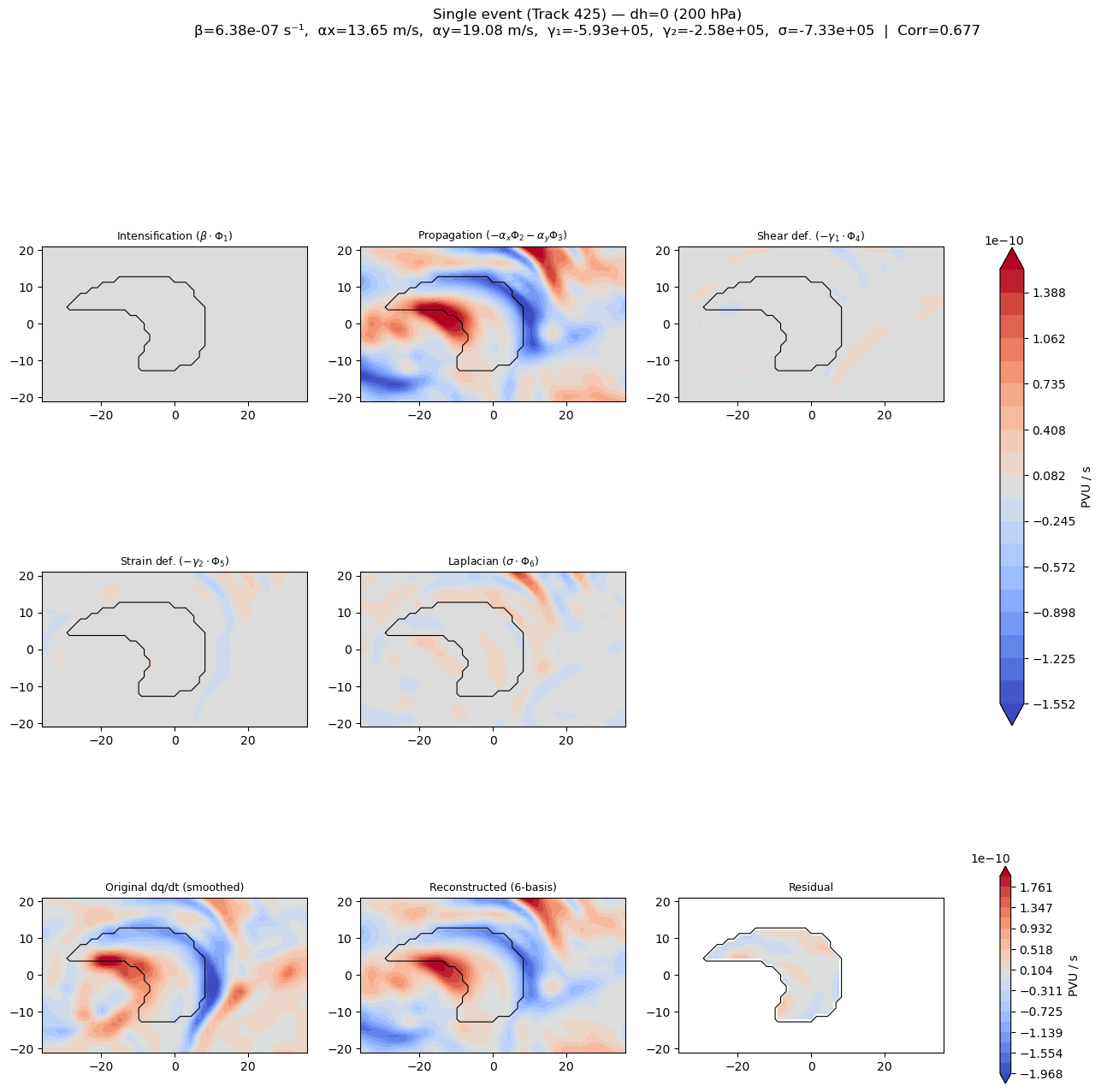

6 Section 3 — Reconstruction at dh=0: components + quality
For each basis, top row shows: intensification (β·Φ₁), propagation (−αx·Φ₂ − αy·Φ₃), deformation (γ·Φ₄). Bottom row: original dq/dt, reconstructed, residual.
[7]:
# ── Project track 425 dq/dt onto all 3 bases ────────────────────────
pv_dt = d0["pv_anom_dt"] + d0["pv_bar_dt"]
pv_dt_smooth = smooth(pv_dt)
projs = {}
for bkey in basis_keys:
projs[bkey] = project_field(pv_dt_smooth, bases[bkey])
p = projs[bkey]
print(f"\n{LABELS[bkey]}:")
print(f" β = {p['beta']:.3e} s⁻¹, αx = {p['ax']:.2f} m/s, αy = {p['ay']:.2f} m/s, γ₁ = {p['gamma1']:.3e}, γ₂ = {p['gamma2']:.3e}, σ = {p['sigma']:.3e} m² s⁻¹")
mask_ok = np.isfinite(pv_dt_smooth) & np.isfinite(p["recon"])
corr = np.corrcoef(pv_dt_smooth[mask_ok], p["recon"][mask_ok])[0, 1]
print(f" RMSE / max|dq/dt| = {p['rmse'] / (np.nanmax(np.abs(pv_dt_smooth)) + 1e-30):.3f}, Corr = {corr:.4f}")
Single event (Track 425):
β = 6.381e-07 s⁻¹, αx = 13.65 m/s, αy = 19.08 m/s, γ₁ = -5.932e+05, γ₂ = -2.575e+05, σ = -7.330e+05 m² s⁻¹
RMSE / max|dq/dt| = 0.077, Corr = 0.6770
All-event composite (N≈1260):
β = -5.533e-06 s⁻¹, αx = 37.34 m/s, αy = 20.05 m/s, γ₁ = 7.248e+06, γ₂ = 5.895e+06, σ = 2.281e+06 m² s⁻¹
RMSE / max|dq/dt| = 0.214, Corr = 0.5667
CWB-only composite (N≈239):
β = -1.006e-05 s⁻¹, αx = 38.11 m/s, αy = 8.99 m/s, γ₁ = -4.501e+06, γ₂ = 4.873e+06, σ = 5.739e+06 m² s⁻¹
RMSE / max|dq/dt| = 0.220, Corr = 0.6016
[12]:
for bkey in basis_keys:
b = bases[bkey]
p = projs[bkey]
# ── Component fields ────────────────────────────────────────────
int_comp = p["beta_raw"] * b.phi_int
prp_comp = -p["ax_raw"] * b.phi_dx + (-p["ay_raw"] * b.phi_dy)
def1_comp = -p["gamma1_raw"] * b.phi_def
def2_comp = -p["gamma2_raw"] * b.phi_strain
lap_comp = p["sigma_raw"] * b.phi_lap
recon = p["recon"]
resid = p["resid"]
# ── Shared colour limits ────────────────────────────────────────
vmax_top = max(np.nanpercentile(np.abs(int_comp), 97),
np.nanpercentile(np.abs(prp_comp), 97),
np.nanpercentile(np.abs(def1_comp), 97),
np.nanpercentile(np.abs(def2_comp), 97),
np.nanpercentile(np.abs(lap_comp), 97))
vmax_bot = np.nanpercentile(np.abs(pv_dt_smooth), 99)
lev_top = np.linspace(-vmax_top, vmax_top, 20)
lev_bot = np.linspace(-vmax_bot, vmax_bot, 20)
fig, axes = plt.subplots(3, 3, figsize=(17, 14))
# ── Top two rows: 5 component maps + 1 empty ───────────────────
comp_list = [
(int_comp, r"Intensification ($\beta \cdot \Phi_1$)"),
(prp_comp, r"Propagation ($-\alpha_x \Phi_2 - \alpha_y \Phi_3$)"),
(def1_comp, r"Shear def. ($-\gamma_1 \cdot \Phi_4$)"),
(def2_comp, r"Strain def. ($-\gamma_2 \cdot \Phi_5$)"),
(lap_comp, r"Laplacian ($\sigma \cdot \Phi_6$)"),
]
for idx, (fld, ttl) in enumerate(comp_list):
row, col = divmod(idx, 3)
ax = axes[row, col]
cf = ax.contourf(x_rel, y_rel, fld, levels=lev_top, cmap="coolwarm", extend="both")
ax.contour(x_rel, y_rel, b.mask.astype(float), levels=[0.5], colors="k", linewidths=0.8)
ax.set_title(ttl, fontsize=9)
ax.set_aspect("equal")
axes[1, 2].set_visible(False) # empty cell in row 1
fig.colorbar(cf, ax=[axes[0, j] for j in range(3)] + [axes[1, j] for j in range(2)],
shrink=0.8, label="PVU / s")
# ── Bottom row: original, reconstructed, residual ───────────────
for i, (fld, ttl) in enumerate([
(pv_dt_smooth, "Original dq/dt (smoothed)"),
(recon, r"Reconstructed (6-basis)"),
(resid, "Residual"),
]):
ax = axes[2, i]
cf2 = ax.contourf(x_rel, y_rel, fld, levels=lev_bot, cmap="coolwarm", extend="both")
ax.contour(x_rel, y_rel, b.mask.astype(float), levels=[0.5], colors="k", linewidths=0.8)
ax.set_title(ttl, fontsize=9)
ax.set_aspect("equal")
fig.colorbar(cf2, ax=axes[2, :].tolist(), shrink=0.8, label="PVU / s")
mask_ok = np.isfinite(pv_dt_smooth) & np.isfinite(recon)
corr = np.corrcoef(pv_dt_smooth[mask_ok], recon[mask_ok])[0, 1]
subtitle = (f"β={p['beta']:.2e} s⁻¹, αx={p['ax']:.2f} m/s, "
f"αy={p['ay']:.2f} m/s, γ₁={p['gamma1']:.2e}, γ₂={p['gamma2']:.2e}, σ={p['sigma']:.2e} | Corr={corr:.3f}")
fig.suptitle(f"{LABELS[bkey]} — dh=0 ({_lvl_str})\n{subtitle}", fontsize=12, y=1.03)
# plt.tight_layout()
plt.show()
7 Section 4 — Lifecycle coefficient curves (3-way comparison)
[9]:
dh_values = list(range(-13, 13))
coefs_3way = {bkey: {k: [] for k in ["beta", "ax", "ay", "gamma1", "gamma2", "sigma"]} for bkey in basis_keys}
for dh in dh_values:
sign = "+" if dh >= 0 else ""
# ── Load single-event NPZ at this dh ────────────────────────────
pattern = f"{DATA_ROOT}/{STAGE}/dh={sign}{dh}/track_{TRACK_ID}_*_dh{sign}{dh}.npz"
files = sorted(glob.glob(pattern))
if not files:
for bkey in basis_keys:
for k in coefs_3way[bkey]:
coefs_3way[bkey][k].append(np.nan)
continue
dd = dict(np.load(files[0]))
pv_dt_s = smooth(dd["pv_anom_dt"] + dd["pv_bar_dt"])
# ── Single-event basis at this dh ───────────────────────────────
b_ev = compute_orthogonal_basis(
dd["pv_anom"], dd["pv_dx"], dd["pv_dy"],
x_rel, y_rel, mask=MASK_SPEC_EVENT,
apply_smoothing=True, smoothing_deg=SMOOTH_DEG, grid_spacing=GRID_SP,
)
p_ev = project_field(pv_dt_s, b_ev)
for k in coefs_3way["event"]:
coefs_3way["event"][k].append(p_ev[k])
# ── All-composite basis at this dh ──────────────────────────────
if dh in DH_RANGE:
b_all = compute_orthogonal_basis(
_cm_all(dh, "pv_anom"), _cm_all(dh, "pv_dx"), _cm_all(dh, "pv_dy"),
x_rel, y_rel, mask=MASK_SPEC,
apply_smoothing=True, smoothing_deg=SMOOTH_DEG, grid_spacing=GRID_SP,
)
p_all = project_field(pv_dt_s, b_all)
for k in coefs_3way["all"]:
coefs_3way["all"][k].append(p_all[k])
else:
for k in coefs_3way["all"]:
coefs_3way["all"][k].append(np.nan)
# ── CWB-only basis at this dh ──────────────────────────────────
if dh in DH_RANGE_CWB:
b_cwb = compute_orthogonal_basis(
_cm_cwb(dh, "pv_anom"), _cm_cwb(dh, "pv_dx"), _cm_cwb(dh, "pv_dy"),
x_rel, y_rel, mask=MASK_SPEC,
apply_smoothing=True, smoothing_deg=SMOOTH_DEG, grid_spacing=GRID_SP,
)
p_cwb = project_field(pv_dt_s, b_cwb)
for k in coefs_3way["cwb"]:
coefs_3way["cwb"][k].append(p_cwb[k])
else:
for k in coefs_3way["cwb"]:
coefs_3way["cwb"][k].append(np.nan)
print(f"dh={sign}{dh:>3d} β_ev={p_ev['beta']:.3e} β_all={coefs_3way['all']['beta'][-1]:.3e} β_cwb={coefs_3way['cwb']['beta'][-1]:.3e}")
for bkey in basis_keys:
for k in coefs_3way[bkey]:
coefs_3way[bkey][k] = np.array(coefs_3way[bkey][k])
dh_arr = np.array(dh_values)
print(f"\nDone — {len(dh_values)} steps × 3 bases")
/tmp/ipykernel_3458639/2565043548.py:19: UserWarning: compute_orthogonal_basis: grid_spacing=1.5°, center_lat=60.0°N → dx(center)=83.4 km, dy=166.8 km
b_ev = compute_orthogonal_basis(
/tmp/ipykernel_3458639/2565043548.py:30: UserWarning: compute_orthogonal_basis: grid_spacing=1.5°, center_lat=60.0°N → dx(center)=83.4 km, dy=166.8 km
b_all = compute_orthogonal_basis(
/tmp/ipykernel_3458639/2565043548.py:44: UserWarning: compute_orthogonal_basis: grid_spacing=1.5°, center_lat=60.0°N → dx(center)=83.4 km, dy=166.8 km
b_cwb = compute_orthogonal_basis(
dh=-13 β_ev=3.474e-06 β_all=2.680e-05 β_cwb=3.467e-05
dh=-12 β_ev=2.794e-06 β_all=2.450e-05 β_cwb=3.179e-05
dh=-11 β_ev=2.426e-06 β_all=2.580e-05 β_cwb=3.150e-05
dh=-10 β_ev=2.500e-06 β_all=2.437e-05 β_cwb=2.875e-05
dh= -9 β_ev=2.367e-06 β_all=1.834e-05 β_cwb=2.152e-05
dh= -8 β_ev=2.176e-06 β_all=1.411e-05 β_cwb=1.595e-05
dh= -7 β_ev=1.783e-06 β_all=1.040e-05 β_cwb=1.173e-05
dh= -6 β_ev=3.033e-06 β_all=1.023e-05 β_cwb=1.092e-05
dh= -5 β_ev=1.681e-06 β_all=8.098e-06 β_cwb=7.796e-06
dh= -4 β_ev=8.522e-07 β_all=3.998e-06 β_cwb=1.913e-06
dh= -3 β_ev=-7.051e-07 β_all=-4.866e-07 β_cwb=-4.233e-06
dh= -2 β_ev=-1.042e-06 β_all=-3.687e-06 β_cwb=-7.886e-06
dh= -1 β_ev=2.994e-07 β_all=-4.779e-06 β_cwb=-8.918e-06
dh=+ 0 β_ev=6.381e-07 β_all=-5.533e-06 β_cwb=-1.006e-05
dh=+ 1 β_ev=2.050e-06 β_all=-4.071e-06 β_cwb=-9.857e-06
dh=+ 2 β_ev=1.307e-06 β_all=-7.922e-06 β_cwb=-1.487e-05
dh=+ 3 β_ev=-5.463e-07 β_all=-1.247e-05 β_cwb=-1.954e-05
dh=+ 4 β_ev=-3.967e-07 β_all=-1.275e-05 β_cwb=-1.947e-05
dh=+ 5 β_ev=-1.080e-06 β_all=-1.312e-05 β_cwb=-1.920e-05
dh=+ 6 β_ev=4.223e-07 β_all=-1.266e-05 β_cwb=-1.797e-05
dh=+ 7 β_ev=-1.353e-07 β_all=-1.259e-05 β_cwb=-1.760e-05
dh=+ 8 β_ev=9.437e-07 β_all=-1.236e-05 β_cwb=-1.695e-05
dh=+ 9 β_ev=-5.872e-08 β_all=-1.184e-05 β_cwb=-1.607e-05
dh=+ 10 β_ev=6.511e-07 β_all=-1.164e-05 β_cwb=-1.563e-05
dh=+ 11 β_ev=6.441e-07 β_all=-1.159e-05 β_cwb=-1.530e-05
dh=+ 12 β_ev=1.481e-06 β_all=-1.155e-05 β_cwb=-1.502e-05
Done — 26 steps × 3 bases
[10]:
coef_info = [
("beta", r"$\beta$ (intensification)", r"s$^{-1}$"),
("ax", r"$\alpha_x$ (zonal propagation)", "m / s"),
("ay", r"$\alpha_y$ (merid. propagation)", "m / s"),
("gamma1", r"$\gamma_1$ (shear def.)", r"m$^2$ s$^{-1}$"),
("gamma2", r"$\gamma_2$ (strain def.)", r"m$^2$ s$^{-1}$"),
("sigma", r"$\sigma$ (Laplacian)", r"m$^2$ s$^{-1}$"),
]
fig, axes = plt.subplots(3, 2, figsize=(14, 8), sharex=True)
for i, (key, title, unit) in enumerate(coef_info):
ax = axes.flat[i]
for bkey in basis_keys:
ax.plot(dh_arr, coefs_3way[bkey][key], f"{COLORS[bkey]}-o", ms=3,
lw=1.8, label=LABELS[bkey])
ax.axhline(0, color="gray", lw=0.5, ls=":")
ax.axvline(0, color="gray", lw=0.5, ls=":")
ax.set_title(title)
ax.set_ylabel(unit)
axes[1, 0].set_xlabel("Hours relative to onset")
axes[1, 1].set_xlabel("Hours relative to onset")
axes[0, 0].legend(fontsize=8, loc="best")
fig.suptitle(f"Track {TRACK_ID} — Lifecycle coefficients, 3-way basis comparison ({STAGE}, {_lvl_str})",
fontsize=12, y=1.02)
plt.tight_layout()
plt.show()
[11]:
# ── Section 5: αx and αy vs track-centre velocity ───────────────────
from datetime import datetime, timedelta
# ── 1. Parse track centres from blockstats ───────────────────────────
BLOCKSTATS = "/net/flood/data2/users/x_yan/tracking_tmpp/ERA5_blockstats.txt"
track_rows = []
with open(BLOCKSTATS) as fh:
for line in fh:
parts = line.strip().split("\t")
if parts[0].strip() == TRACK_ID:
track_rows.append(parts)
_ts_list, _lat_list, _lon_list = [], [], []
for row in track_rows:
ts_str = row[2].strip().strip('"')
_ts_list.append(datetime.strptime(ts_str, "%Y-%m-%d %H:%M:%S"))
_lat_list.append(float(row[3].strip()))
_lon_list.append(float(row[4].strip()))
ts_arr = np.array(_ts_list)
lat_arr = np.array(_lat_list)
lon_arr = np.array(_lon_list)
# ── 2. Compute track velocity (m/s) via centred differences ─────────
cos_lat = np.cos(np.radians(lat_arr))
dlat = np.gradient(lat_arr)
dlon = np.gradient(lon_arr)
vx_track = dlon * (np.pi / 180.0) * R_EARTH * cos_lat / 3600.0
vy_track = dlat * (np.pi / 180.0) * R_EARTH / 3600.0
# ── 3. Map dh → track velocity ──────────────────────────────────────
onset_ts = datetime.strptime(str(d0["ts"]), "%Y-%m-%d %H:%M:%S")
track_vx_at_dh = np.full_like(dh_arr, np.nan, dtype=float)
track_vy_at_dh = np.full_like(dh_arr, np.nan, dtype=float)
for i, dh in enumerate(dh_arr):
target_ts = onset_ts + timedelta(hours=int(dh))
matches = np.where(ts_arr == target_ts)[0]
if len(matches) == 1:
idx = matches[0]
track_vx_at_dh[i] = vx_track[idx]
track_vy_at_dh[i] = vy_track[idx]
# ── 4. Two panels: αx & αy vs track velocity (dh ≥ 0 only) ─────────
mask_pos = dh_arr >= 0
dh_pos = dh_arr[mask_pos]
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))
# Panel A: αx
for bkey in basis_keys:
ax1.plot(dh_pos, coefs_3way[bkey]["ax"][mask_pos], f"{COLORS[bkey]}-o", ms=4,
lw=1.8, label=LABELS[bkey])
ax1.plot(dh_pos, track_vx_at_dh[mask_pos], "k--s", ms=4, lw=1.5,
label=f"Track {TRACK_ID} centre $v_x$")
ax1.axhline(0, color="grey", lw=0.5, ls=":")
ax1.set_xlabel("Hours after onset")
ax1.set_ylabel("m / s")
ax1.set_title(r"Zonal: diagnosed $\alpha_x$ vs track $v_x$")
ax1.legend(fontsize=7, loc="best")
# Panel B: αy
for bkey in basis_keys:
ax2.plot(dh_pos, coefs_3way[bkey]["ay"][mask_pos], f"{COLORS[bkey]}-o", ms=4,
lw=1.8, label=LABELS[bkey])
ax2.plot(dh_pos, track_vy_at_dh[mask_pos], "k--s", ms=4, lw=1.5,
label=f"Track {TRACK_ID} centre $v_y$")
ax2.axhline(0, color="grey", lw=0.5, ls=":")
ax2.set_xlabel("Hours after onset")
ax2.set_ylabel("m / s")
ax2.set_title(r"Meridional: diagnosed $\alpha_y$ vs track $v_y$")
ax2.legend(fontsize=7, loc="best")
fig.suptitle(f"Track {TRACK_ID} — Propagation vs track velocity ({STAGE}, {_lvl_str})",
fontsize=12, y=1.02)
plt.tight_layout()
plt.show()
